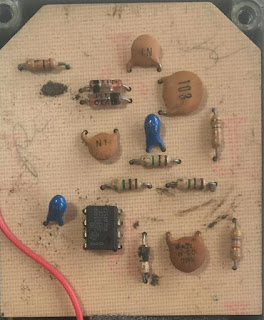

| Old School MXR Distortion + PCB - Image from Premier Guitar |
Thursday, January 4, 2024
A Vintage Style Dimetrodon!
The Steggo Dimetrodon Distortion is based on the vintage Distortion+ circuit, but up to this point I'd only used all modern components in my Dimetrodon builds. Given the original Distortion+ dates from the 70's I thought it would be fun to look for old gut shots of the pedal to see what sort of components were used on the early iterations of that pedal and test out the Dimetrodon with something similar. I had also recently built a couple of Dimetrodon Distortion pedals with the Sovtek tone stack, but I didn't have one for personal use, so this build let me sort of kill two birds with one stone!
